InSight - Archery Aimbot
7 photos · Mar – May 2024

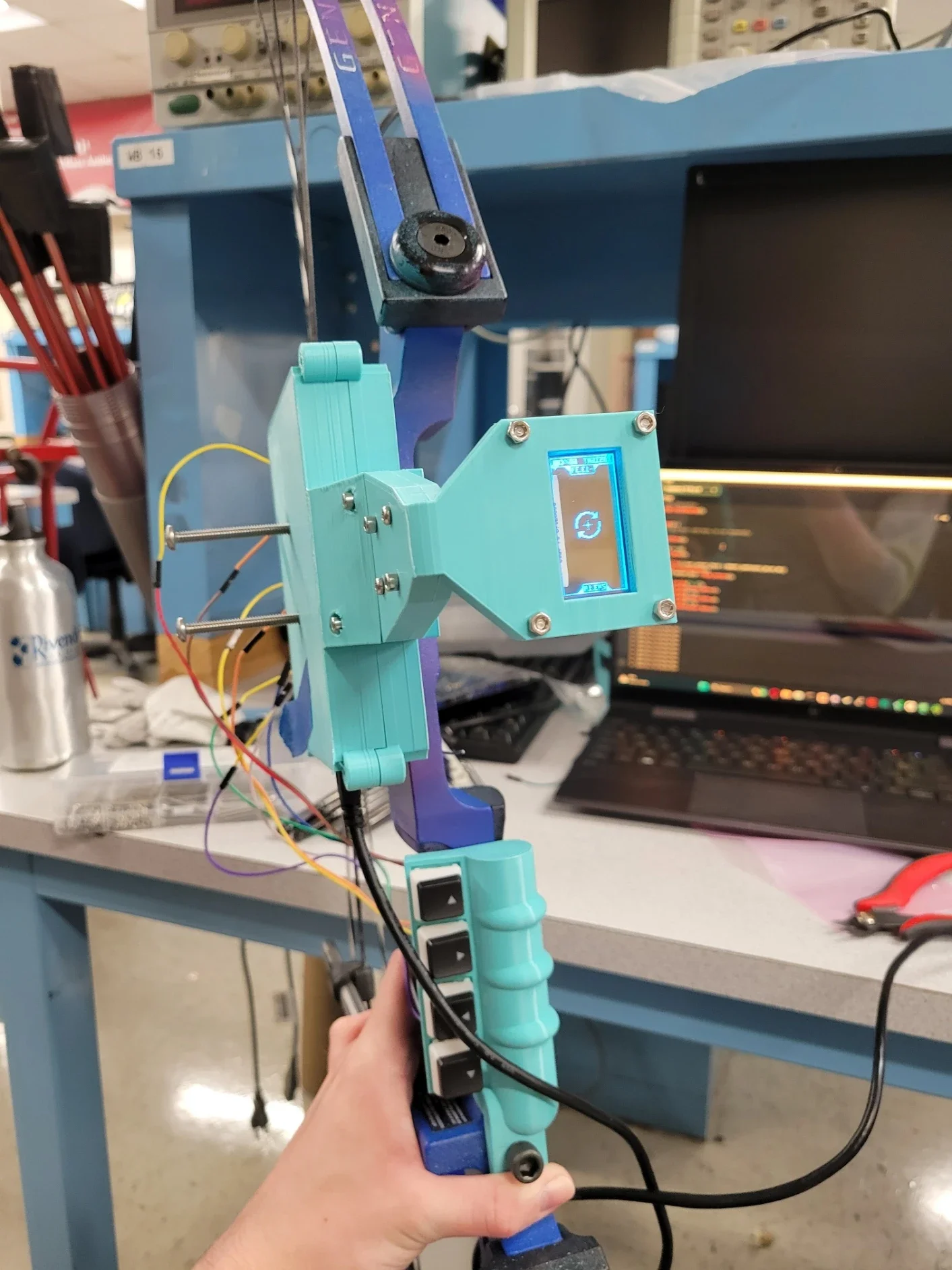

This was my Senior Design Project for my Electrical Engineering degree. My team of 4 made an aim-assist scope using IMU sensors and a transparent OLED display mounted directly to the bow. This is where we learned PCB design and a lot about the engineering process.
-
Stardate 17119.2
-

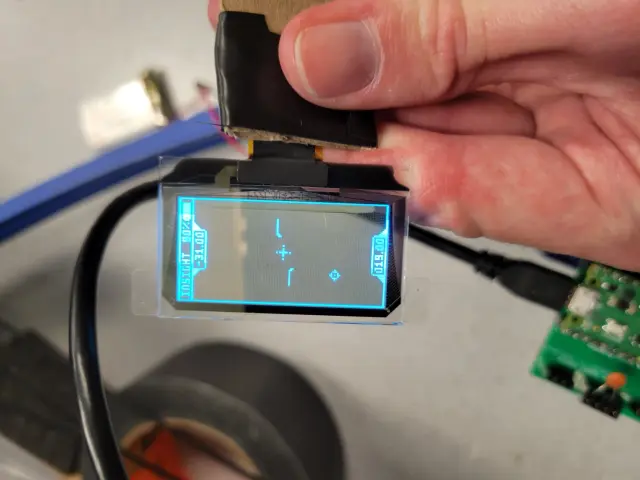

We let you define target distance and arrow speed of your bow to run our 4th order differential equations to simulate the arrow trajectory in real time and show you how you needed to compensate your pitch and yaw. Stardate 17092.5
-

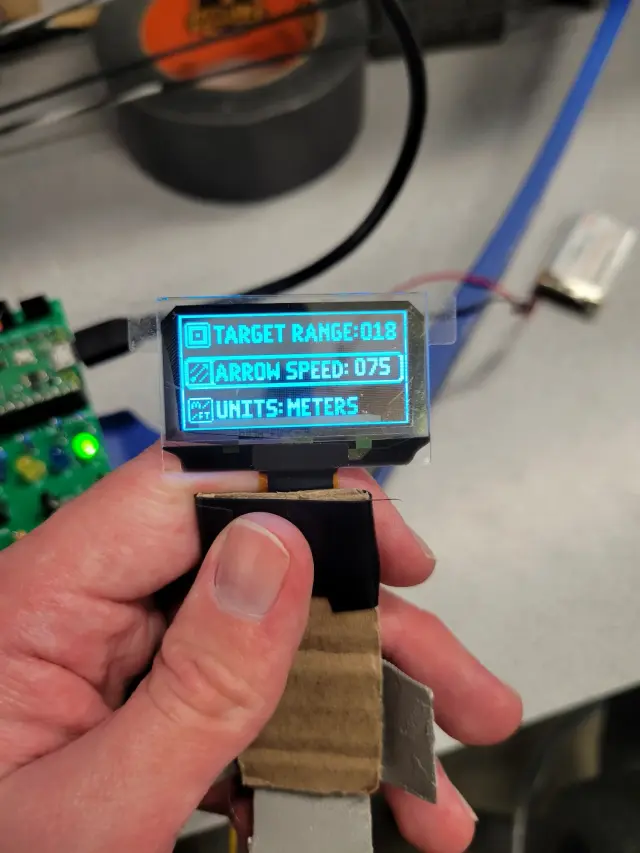

Testing the UI Stardate 17092.5
-

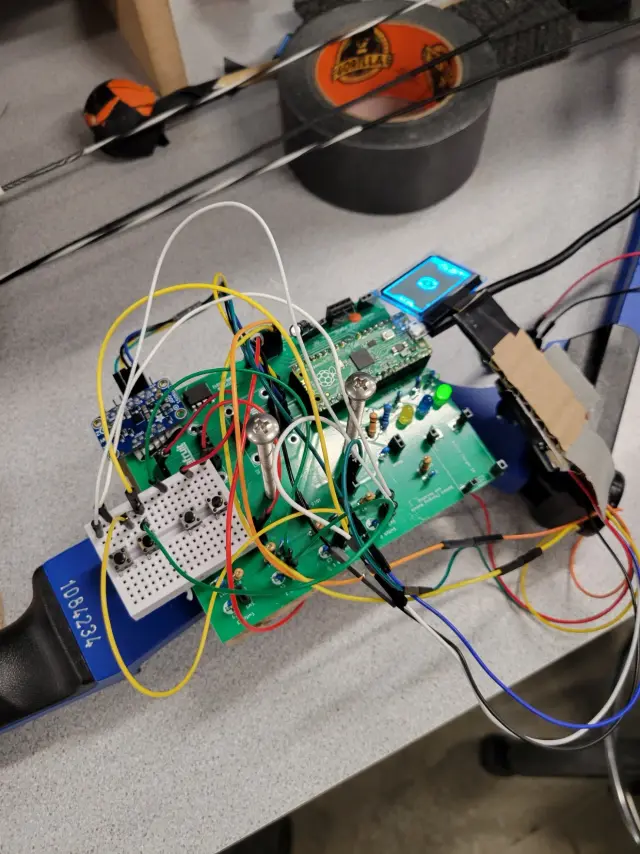

Prototyping fun Stardate 17092.5
-

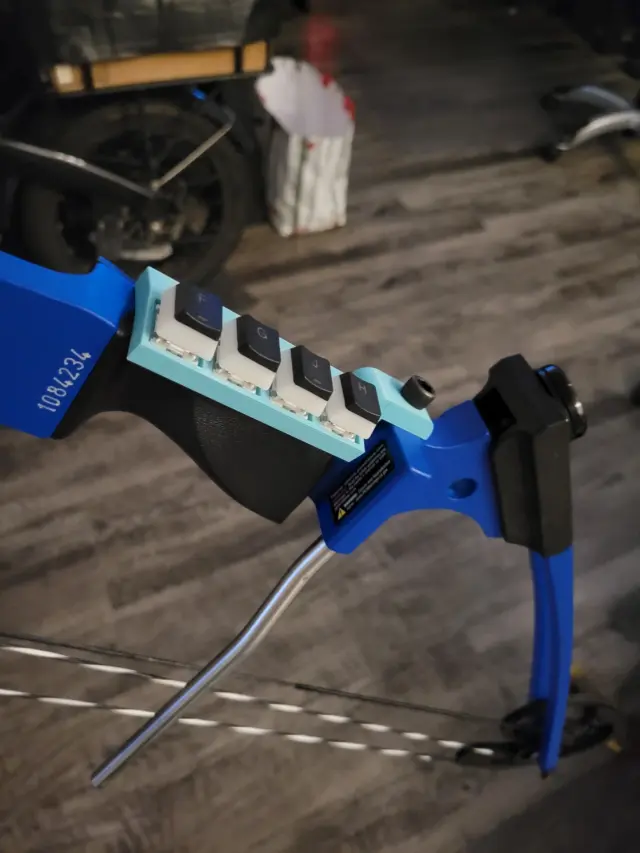

You gotta have the Cherry MX Red key switches on your Pro Gamer Archery Aimbot™. This thing was a pain to model to fit directly onto the bow while still being ergonomic. Stardate 17119.2
-

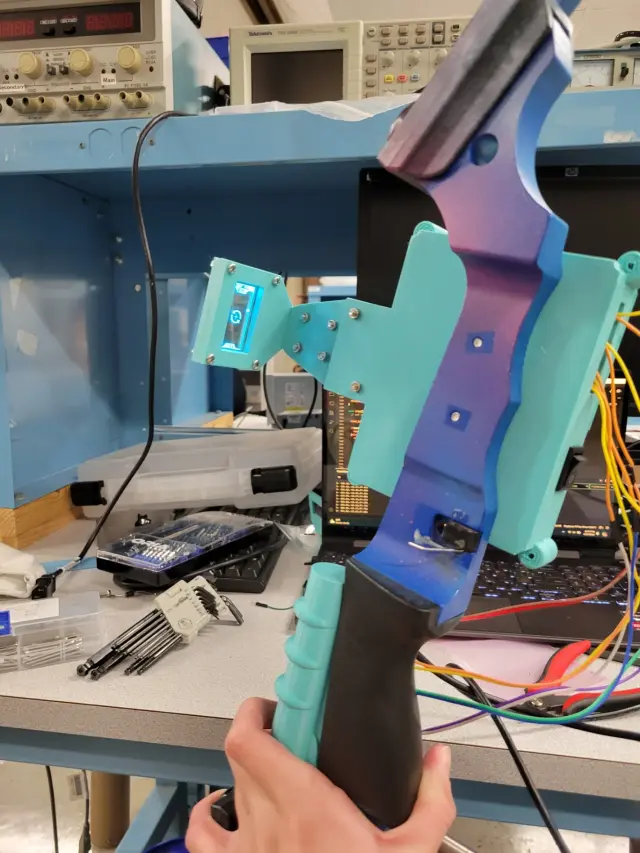

Stardate 17119.2
-
Someone really should've told me my hair looked like I had been up all night perfecting our algorithm before our big demo day... I guess it adds to the crazy engineer look. Stardate 17145.2
